DOCK STEPS DS.20
Fixed on the dock. Gone below deck.
REDUCE THE SLOPE. MAXIMIZE YOUR SAFETY & CONFORT
Steps that welcome you aboard, then disappear when you leave.

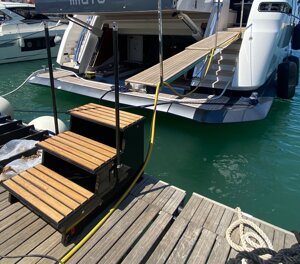

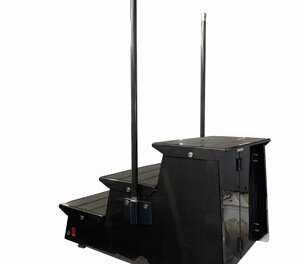

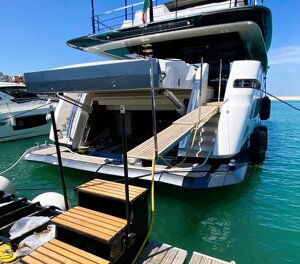

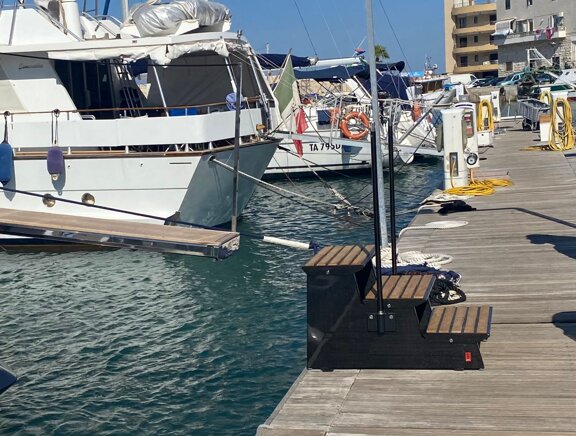

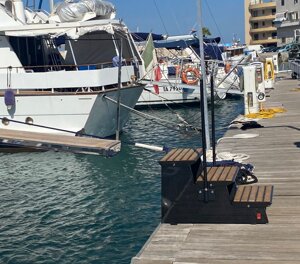

Dock Steps DS.20 are removable carbon boarding steps for the dock, in a fixed version or a foldable one that packs down to a minimal footprint for stowage on board.

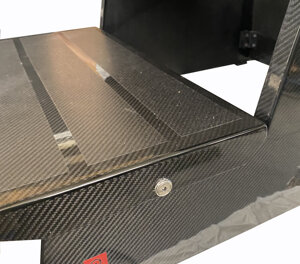

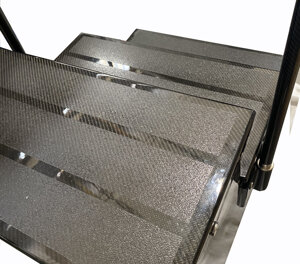

The structure is entirely carbon fibre and epoxy resin, finished in gloss clear C-LOOK with integrated UV protection. Treads are non-slip as standard, with optional natural teak in spaced slats for extra grip and a look that matches your swim platform.
Exposed hardware is polished AISI 316 stainless steel. Adjustable feet at the base level the steps on any dock.
Choose your configuration
Pick the number of steps by the height between dock and boarding point, and the version by how you stow.
- Fixed or Foldable (the Foldable version has removable steps and folding side panels)
- 2 to 4 steps, 225 mm per riser: 450, 675 or 900 mm overall height
- Step width 650 mm standard, 1150 mm on request for 3- and 4-step versions
- The 2-step version is available in Fixed configuration only
At a glance
- Material: carbon fibre and epoxy resin
- Maximum load: 200 kg
- Finish: gloss C-LOOK (matte or custom colours on request)
- Delivery: 5 weeks from order confirmation · Warranty: 12 months · Ex works Rome
Options
Natural teak covering (per step) · Pair of removable stanchions · Dedicated carry and storage bag
For special dimensions or higher loads, the Premium line is available on dedicated drawing.
